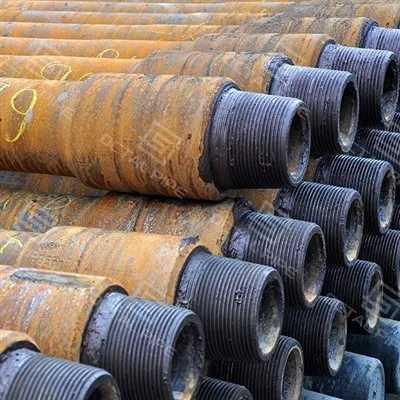

Tuyo de forage

Tuyo de forageab buum forage asiye tubulaire ak njeexte yu tass ak jumtukaay yuñ soudé, ñu defaree ko ba noppi saytu ko ci API Spec 5DP suko defee jëndkat yi mëna tëju nangu, toppu, ak defar -up wóolu balaa tuyo bi di agsi ci rig bi.

Bi mu nekkee defarkatu tuyo forage, Octal Pipe dafay bàyyi xelam ci poñ yiñ mëna saytu -soudure joint jumtukaay, njubte file, ak yobbu -niveau dokimaa - ndax li gëna bari ci rig retard yi dañu tàmbali ci lëkkaloo bi, du ci yaram tuyo bi. yaram tuyo, API Spec 7-1 ngir ëmbeefi tige forage rotary, ak API Spec 7-2 ngir lëkkaloo jumtukaay. Loolu dafay tax mekanik bi am doole, dimensioŋ bu jaar yoon, ak mëna weccoo ak jumtukaayi forage yu internasional.

Ci wàllu jënd dëgg, jafe-jafe yi ci tuyo forage yi duñu tàmbali ci suufu pax mi-dañuy tàmbali cileerul PSL/grade scope, lëkkaloo yu jaarul yoon/joint jumtukaay, ak dokimaa yuñ saytu yu ñàkkloolu mooy yeexal xëcc yiy dugg ba noppi sos rig-delay ci wetu. Octal dafay joxe tuyo forage API 5DPnangu-kofre biy waaja: leer RFQ duggal (jëfandikoo API RP 7G ni royuwaay tànneef), leeral yaatuwaayu saytu, ak paketu këyitu pack buy wàññi liggéeyaat ak argument ci ginnaaw.

Tuyo forage yi ñooy buum yiy boole sistem rotatif bi ci kaw suuf si ak bit bi ak ensemble pax mi ci suuf (BHA). Ci forage bu jaar yoon, dafay def ñatti mbir benn yoon. Bi njëkk mooy yónnee couple rotary ak RPM ci kaw drive wala table rotary jaaraleko ci jumtukaay-joint conexions ngir wëlbati bit bi. Ñaareel ba mooy mu yor sargu axial (poid-ci -bit) ak bënndam ginaaw bi trajectoire forage bi soppeekoo ba noppi buum gi daje ak forage bi. Ñatteel ba mooy, dafay nekk kanal bu am pression ngir fluide forage bi: dañuy pompe potoxo bi wàcci ci tige forage bi dem ci buse bit yi, ginaaw ga mu dellu ci kaw annulus bi ngir yóbbu dagg yi, saytu pression bi, seddal bit bi, ak dakkal pax mi.

Ndax environmaa bi ci suufu pax mi nekkul ci anam wu dëgër, buum forage bi dafay musa am tontu yu am doole yu ñuy wane ci nataal bi: yëngu-yëngu axial ak choc (bit rebond), yëngu-yëngu lateral ak impact (bending ak contact ci miir bi), ak yëngu-yëngu torsionel. Vibration torsionnel mën na dem ba nekk stick–slip, fu bit bi di yeex wala di taxaw ci diir bu gàtt bi surface bi di wëréelu, ba noppi mu bàyyi ci saasi - defar couple bu yéeg ba noppi gaawlu coono ci lëkkaloo yi ak zone transition yi. Bit whirl ab instabilite latéral la fu bit/BHA di jaar ci diggu pax mi; jëm kanam ak ginaaw whirl di fësal rotation / contact motifs wuute ak mën dawal gaaw dagg wear ak conexioŋ yàqu. Lii moo tax tànneef ak saytu tige forage a ngi aju ci njubteg lëkkaloo gi, méngoo dimension yi, ak mëna topp, du OD ak dëgëraay miir kese.

Defarkatu tuyo forage moo ko tabax ci API Spec 5DP suko defee jëndkat yi mëna tëju, tàngoor - ba - toppu lëkkaloo, ak defar - wóolu balaa tuyo bi di yegg ci rig bi.

Tuyo forage

API 5DP Drill Pipe Specification (Grades, Tailles, Connexions)

• Tannu grade bi: méngale E75/X95/G105/S135 ak couple bi ñuy seentu, tension bi, ak prograamu xóotaayu forage bi.
• Teen yu asid / corrosif: Wax CO2 / H2S tendensi suko defee tànneefi aar ak yaatuwaayu saytu mën nañu méngoo (suñu ko leeralee).
• Kontrôlu risku lëkkaloo: Tannal xeetu jumtukaay bi nga boole ngir wàññi galling ak yàqu-yàqu ci mbagg yi.
• Joxe leer: Dafay laaj ràññeekaay bu lëkkaloo - + limu emballage ngir gaaw ci lim ak nangu ëtt.

Octal Pipe dafa topp xeetu defar bu jaar yoon, te mën nañu ko topp ngir gaaraati njubte mekanik bi ak baña coono:

1. Defar asiye ak roulage tube

• Tube asiye aleage sans couture (35CrMo, 40Cr, 4137H, 4145H) ak chimie buñ saytu.
• Wéyal jëmmal ak bënn yi dañuy fexe ba pepp mi yamale.

2. Luy merloo

• Catu tuyo yi dañu leen tàngal ba noppi ñu defar leen ñu nekk jëmmu Upset bu Biir (IU), Upset bu Biti (EU), wala Upset bu Biir (IEU).
• Upsetting dafay yokk yaatuwaayu section cross- ngir jumtukaay biy boole soudure, gëna dëgëral lëkkaloo gi.

3. Traitement à chaleur

• Faj ak température dafay joxe dooley rendement/traction bi war (lu melni, S135 Lu ëpp wala lu tollu ci 135,000 psi).
• Ciklu four yiñ saytu dañuy fexe ba dëgëraay bi yam ci guddaayu tige bi yépp.

4. Soudure à friction

• Friksioŋ bu jaar yoon-soudure dafay boole jumtukaay yi ak yaramu tige bi.
• Zone de soudure defay def ay traitement thermique yu amul fenn ngir mëna am lëkkaloo metallurgique bu jaar yoon.

5. Usinage & Filage

• API 7-2 file (NC, IF, REG, FH) dagg ci CNC bu jaar yoon.
• Couche phosphate ak plaking de cuivre ñu def ngir wàññi galling.

6. Band bu dëgër & Aar ci kaw suuf

• Fe{0}}base, Cr{1}}carbure, wala Nb aleage bu dëgër dafay yokk dëgëraay biy baña yàqu.
• Couche bu mujj ak ay inhibitëru xoosu ngir aar ci yóbbu/denc.

• Lëkkaloo yiñ miin:API NC, SI, FH, REG
• Lëkkaloo premium:XTTM, HTTM, ñaari-fil mbagg (ngir couple ak baña coono)
• Bande dur:Wear-couches de protection yuñ def ci juntuwaayu jumtukaay yi, wàññi li ñuy faral di wecci dëru rig bi.
• Pajum kaw suuf:Plaqué de cuivre, phosphat, anti-couchages.

API 5DP lëkkalekaay tuyo forage ak juntuwaayxoolal ndax sa buum defay jaar yoon ci rig-wala mu soppeeku ci liggéeyaat ak diiru xaar. "Jafe-jafe yi gëna bari ci sit yi" ñu ngi bawoo ci benn ci ñatti bërëbi jënd yi:tegtal lëkkaloo bu jaarul yoon, jumtukaayu lëkkaloo dimension yi méngoowul ak jumtukaayi jëfandikoo, walaamul firnde ci yoriinu thread.

Li nga wara def ci PO bi (ngir Octal mëna ko joxe ci sistem bu méngoo):

• Xeetu lëkkaloo:NC / IF / REG / FH (wala sa xeetu gaal)
• Planu pin/boîte:firndeel jubluwaayu pin/boyet bi ak bépp soxla crossover
• Limite yu boole jumtukaay yi:jumtukaay boole OD + espace pince / ascenseur area constraints
• Tànneefi sol (su ko soxlaa rek):bande dur, revêtement interne, pratique anti-galling
• Scope aar:aar fiil yi bokk nañu ci (pin & boîte)

No Octal di wàññi jafe-jafe yi (muy lu amul benn werante):

• Noo ngi firndeelpalaŋu lëkkaloo ak jumtukaay yiñ boole balaa ñuy liggéeyKon pipe biñu la jox mingi méngoo ak sa jëffu rig, du thread bu "default".
• Bépp yobbu amnatoppu + dokimaa ci dimension, akfirnde gaging thread suñu ko leeralee-kon inspection biy dugg mën na dem te doo topp imeel.
• Aarkatu fiil yi ak lëkkaloo bu dëgër dañu leen jàppee ni bokk ci li ñuy saytu risk yi, ndax jafe-jafe yi gëna bari ci make-up dañu tàmbali ci jëfandikoo gi, du ci metallurgie.

jënd- njëkk + Octal saytu:

Rig-floor yàqu-yàqu dafay faral di bawoo ci jumtukaayi jëfandikoo bu jaarul yoon, tabb pin bu jaarul yoon, wala defar bu jaarul yoon. Octal Pipe dafay joxe tuyo forage ak tànneef ci lëkkaloo (NC / IF / REG / FH ak premium ñaari - mbagg) ak pajum kaw (phosphating / plaking de cuivre) suko defee buum gi di dox bu baax ak jumtukaayi jëfandikoo buñ miin.

Bësal Royuwaayu Dayo Forage (ngir filet butik, du Tuyo Forage Oilfield)

Laajte yii ci topp "dayo forage robinet" dañuy wax ci dayo forage robinet yi ñuy jëfandikoo ngir dagg file NPT ci biir atelier; duñu tuyo forage OD/connexion. Ngir am royuwaay bu gaaw: 1/8 "NPT forage robinet dafay faral di am11/32" (0,344" / 8,73 mm), 1/4 "NPT mooy7/16" (0,438" / 11,11 mm), ak 3/8 "NPT mooy37/64" (0,578" / 14,68 mm)-deel xool saa yu nekk ci tablo defarkatu robinet bi ngir xam xeetu buum yi ak pursàntaasu buum yi.

Xeeti tuyo forage yu bari dañu leen di defar ngir anam yu ñuy forage:

• E75:Ndax lu ëpp wala lu tollu ci 75,000 psi. Dafay baax ci puus yu xóotul/diggu -.
• X95:Ndax lu ëpp wala lu tollu ci 95,000 psi. général-grade ak dëgër bu gëna baax.
• G105:Ndax lu ëpp wala lu tollu ci 105,000 psi. Dañu koy jëfandikoo ci puus yu gëna xóot wala ci sargal yu gëna kawe.
• S135:Ndax lu ëpp wala lu tollu ci 135,000 psi. Dañu ko soxla ci puus yu xóot yi ak ci anam yu HPHT.

Parametre mekanik yu am solo (ci API 7-1 / 5DP):

• Force de traction:Ñu ngi ko firnde ci test buy yàq ci grade bu nekk.
• Dëgëru impact:Charpy V{0}}natt ci tàngoor yu tar.
• Kontrolu dëgëraay:Jumtukaay boole 285-341 HB tipikal; yaram dëgër réglé bu baax.
• Performance coono:Joint jumtukaay/zone de soudure yaram lañu natt ngir am mbañeelu chargement cyclique.

Jënd soxlawul kàddu "QA yu tar". Danga soxlakritëru nangug limakkëyitu dokimaaloolu mooy wane njariñ yiñ natt. Ngir tuyo forage API 5DP (PSL-1/PSL-2/PSL-3), Octal dafay méngale yaatuwaayu saytu bi ak saPO/ITP, ba noppi joxe dokimaa yu méngoo ak saytu yi sa inspectër yi def.

EN 10204 3.1/3.2 dokimaa (suñu ko leeralee):MTC/CMTR ak nimero tàngoor, chimie, resultaa mekanik, ak mëna topp limu yobbu yi.

Tuyo octalTuyo de forage API 5DPngir prograami forage yi nga xamni jëndkat yi duñu bàyyi xel ci "tuyo forage en général" ak lu gëna bari cilëkkaloo lëkkaloo, risku coono, ak këyitu nanguloolu du yeexal rig bi.

Teen yu jaarul yoon (fu coono ak wear bu juntuwaay yi di njëkka feeñ)

Doglegs ak cycle yu bari dañuy yar lëkkaloo yi. Jumtukaay bi gëna bari luñu koy def ci jënd mooy komànde tuyo te duñu tëjplanu lëkkaloo + jumtukaay, ba noppi gis ñàkka méngoo ci defar-up.

• Xeetu tuyo octal:firndeel lëkkaloo gi gëna jubal ak jumtukaay biy boole ay tënk ci PO, ba noppi jàppale nangu gi ak saytu buum / firnde jauge suñu ko leeralee, kon "du defar" du nekk jafe-jafe rig-time.

Offshore ak logistik yu bari- (fu thread yi di yàqu balaa kenn diko seetlu)

Suñu yéegee tuyo bi, daal di koy def, ba noppi toxal ko lu bari yoon, "dafay nuru lu baax ci yegsi" dafay faral di soppeeku nekk yàqu-yàqu pin/box buy feeñ ci rig bi kese.

• Xeetu tuyo octal:jàpp aar ni bokk na ci QA-aar buum + lëkkale bu dëgër + màrku bu leer ci dayo/grade/guddaay-kon sa ëttu jot du jaxase ay specs te sa ekip du saafara jafe-jafe yi ci yobbu bi.

Serwiis bu forox / fluide forage corrosif (fu corrosion bi ci biir nekk njëg bu nëbbu)

ci puus yi akH2S/CO2, chlorure yu bari, wala ndoxu forage yu am doole, tuyo forage yi dañuy faral di tàmbali ci corrosion bi ci biir wala ci pitting bu yàgg balaa buum gi di "baaxul" ci biti- ginaaw ga mu wane ni dafay teela bañ ci diiru inspection wala downtime buñu xamul.

• Xeetu tuyo octal:nu ngi xool komànd bi ci sa environmaa bi (fluid / dawalkat corrosion + tàngoor), ginaaw ga joxe API 5DP forage pipe aksaytu-pack biy waajadi jàppale nangu (MTC/CMTR + njariñu mekanik, boole ciNDT ak tànneefi coating bi ci biir suñu ko leeralee ci PO/ITP), kon jënd serwiis - bu yàqu du aju ci xalaat.

Ngir EPC ak ñiy liggéey ci forage ñuy méngaledefarkatu tuyo forage bu Chineakfurnisër tuyo forage, dogal bi dafay faral di wàcci ci disipline toppu (tàngoor - ba - joint mapping), aar lëkkaloo bi ci diiru dem bi ak dikk bi, ak ndax dokimaa QA yi mën nañu leen dugal ci sistemu projet bi (suñu ko leeralee ci PO/ITP).

1. Kalite soudure biy boole jumtukaay yi (li gëna am solo ci structure bi)

2. Tuyo forage bariwul lumuy yàqu ci diggu yaram wi njëkk- jafe-jafe yi dañuy faral di dajaloo cijuntuwaayu juntuwaay / barabu soudurendax dafay yóbbaale ay siklu defar, couple ak ñaw. Octal Pipe dafay saytu lii ci jëfandikoo jumtukaay bi ñuy boole muy jéego bu am solo, nekkul luy yokk ci marsandiis, te dokimaa yu yobbu yi dañuy boole jumtukaay bi ñuy boole liggéey bi ci lot bi suko defee nangu gi baña aju ci "dafa baax."

3. Traitement thermique & deggoo grade (lu tax "API 5DP" ba leegi soxla firnde)

4. Jënd tuyo forage API 5DP bokkul ak jënd benn etiket-dafay jëndperformance mekanik buñu mëna baamtulote ci lote. Octal Pipe dafay tëye joxe grade ci anam wu ñuy saytu, ba noppi di joxe resultaa mekanik yi ci këyitu pack bi suko defee jëndkat yi mëna nangu ak firnde, du dige furnisër yi.

5. Fiil usine & disipline jauge (make-up wóolu defar nañu ko)

6. Retard yi gëna bari ci rig yi ñu ngi bawoo ci thread yi: galling, fit bu baaxul, wala yàqu-yàqu yuñ mënoon tere. Octal Pipe dafay doxal thread bi ni kalite defar - thread yi dañu leen di aar ci jëfandikoo gi, te su sa PO/ITP laajee ko, joxe gi dafay àndaale akfirnde ci nattukaay buumKon ekip biy jot mën na siñe te kenn duko xëccoo.

7. Emballage bokk na ci kalite yi (ndax yobbu mën na yàq tuyo bu baax)

8. Ba ci tige buñ defar bamu mat mën nañu ko "baaxul" ci wàllu logistik. Loolu moo tax Octal Pipe dafay jëfandikoo aarkat yi, dajale stabilite, ak màrki ci dayo/grade/guddaay muy bokk ci doxalinu liggéey bi - suko defee li nga jot mën na dox, te baña "soxla tànn ak saytuwaat."

Sooy wut tuyo forage ngir jaay ci prograam buy dox, anam wi gëna gaaw ngir moytu ñu bañ la "du def" mooy nga wax ko ni sistem bu méngoo, te bañ tube generik. Wax OD/WT ak Range (R1/R2/R3), grade (E75/X95/G105/S135), ak tegtal lëkkaloo bi (NC/IF/REG/FH wala ñaari mbagg yu njëkk), ba noppi nga yokk ci jumtukaay biy boole ay tënk (OD/espace biy laaj) ak aarkat bi. Sudee sa PO/ITP dafa bëgg firnde, woo dokimaa yi ci kanam - resultaa yi (dayo mandrel + jàll/jàllul), jauge thread, ak NDT scope suñu ko leeralee - suko defee yobbu bi yegsi "approbation - pare" ci barabu extracycle in.

Jokkoo leen leegi

Xët wii dafay wax cituyo de forage API 5DPngir forage ay buum. Tablo dayo forage robinet ngir file NPT topic machining bu wuute la te bokkul ci jënd tige forage.

laaj ak tontu



Lan mooy wuutale API 5DP ak API RP 7G ci jënd tuyo forage?

API 5DPmooyjënd ak nangu standardngir defar tuyo forage / saytu yaatuwaayu.RP 7Gdi gëna jëfandikooroyuwaayu tànneef(lan lañu wara bàyyi xel ci wàllu tige drill ak àppu liggéey bi). Ci RFQs, jëfandikoo 5DP ngir tëj nangu gi ak jëfandikoo xalaat 7G ngir moytu njuumte - grade / njuumte - jënd lëkkaloo.

Lan laa wara leeral sooy jënd tuyo forage API 5DP ngir moytu rig-side defar - yeexal?

MandargalOD/WT + Range (R1/R2/R3), tolluwaay, ak li gënategtal lëkkaloo(NC/SI/REG/FH) yokkjumtukaay(OD/espace pince). Dojoraar buumak wax bu leer bépp yaatuwaayu saytu buñu soxla (lu melni, thread gauging / NDT) ci PO suko defee dara "dañu jàpp."

Yan këyit ñoo wara ànd ak tuyo forage API 5DP ngir saytu liy dugg?

Lu mu neew:MTC/CMTR (mën nañu ko topp), dokimaa ci dimension/jub, ak limu emballage biñ def cidayo/grade/guddaay. Sudee sa PO/ITP daf ko soxla, yokkalfirnde ci nattukaay buum, yokkNDT/test ndox/rapoor ci njeexitalsudee dañu ko leeral -kon nangu gi dafay sukkandiko ci firnde-, du ci imeel-.

naka lay def ba mëna tànnee lëkkaloo ak jumtukaay ngir prograami forage yu am couple bu yéeg wala yu am couple bu bari?

Ci liggéey bu jaarul yoon/couple bu yéeg-, njuumte yi ak yeexal yi dañuy faral di tàmbali cilëkkaloo/joint jumtukaayarea bi, du yaram wi. Tannal lëkkalekaay yi méngoo ak sa rig/fleet standard, ba noppi nga tëj jumtukaay biy boole ay tënk ak li ñuy laaj ci jëfandikoo (aarkat/emballage) ngir wàññi yàqu-yàqu bu fiil bi ak defar -up bañ; laaj yeneen dokimaa ci saytu sudee sa jaar-jaaru njuumte daf ko gëna dëggal.

Sàrtifikaa yi



Sàrtifikaa CE

Sàrtifikaa ISO 9001

Sàrtifikaa API Q1

Sàrtifikaa ABS

Sàrtifikaa AP-5L

Sàrtifikaa API-5CT



OD Range: 2 3/8" – 6 5/8"

Note yi: E75, X95, G105, S135

Guddaay yi: R1 / R2 / R3

Xeetu mer:UI, UE, UI

Lëkkaloo yi:NC, IF, REG, FH, tànneef yu njëkk

Aplikaasioŋ yi:Pond yu xóot, HPHT, tefes, forage ci yoon
