Raccords de tuyau
Sa furnisër professionel buy defar ay tuyo
Octal Pipe furnisër la bu xarañ te boole ay produit petrolier ak ay pexe asiye industriel yu bawoo ci Chine. Ak jaar-jaar yu bari ci wàllu joxe, séddale, ak defar, nu ngi yam ci joxe xeetu macceer asiye yu bari ngir petroŋ & gaz, energie, ak sektëri usine yi.
Lu tax nga tànn nu
Kalite bu gëna baax
Sunu tuyo asiye yi dañuy jaar ci test yu tar, ba noppi ñu topp sàrt yiñ tëral ci àdduna bi, loolu dafay tax ñu mëna yàgg, baña yàqu, ba noppi mëna liggéey ci anam wu metti.
Sàrtifikaa yi
Bépp produit amna luñu ko mëna topp, sertifikaa di moulin, te dafa méngoo ak sàrti àdduna yu melni API, ASTM, ASME, EN, ak ISO.
Njëgg yu xarañ
Danuy joxe tuyo asiye yu baax ci njëg yu yomb, di yokk valeur bi jaaraleko ci defar bu baax ak yoriinu chaîne de fourniture te baña yàq kalite bi.
Livraison bu gaaw te wóor
Jëfandikoo logistik fret géej bu baax ak reso global, danuy fexe yóbbu ci géej ci waxtu wiñ ko digal ci tuyo asiye yi, wàññi yeexal yi ak tëye seen liggéey ci waxtu wi ñu ko jàpp.

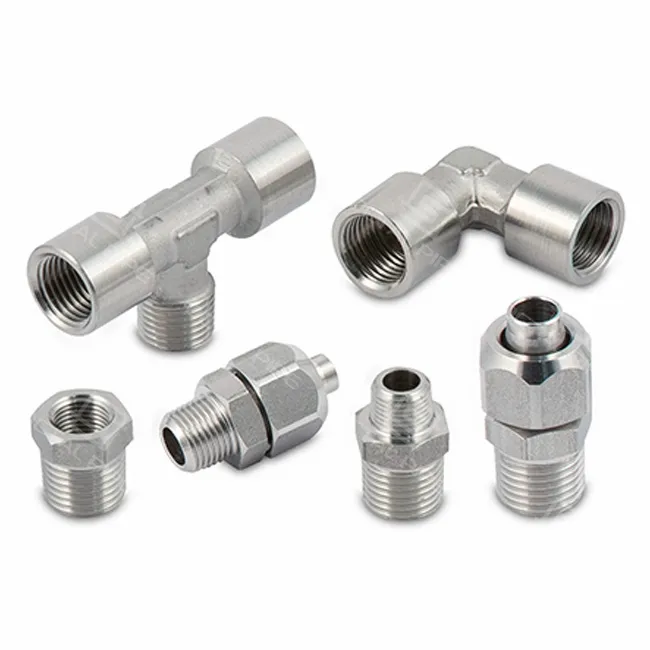

Raccords de tuyau fileté
Fitting tuyo fileté mooy benn xeetu lëkkalekaay tuyo buñuy jëfandikoo ngir boole ak boole tuyo yi ci sistemu plomberie jaaraleko ci ay fil. Catu tuyo yi wala raccords yi dañu leen di defaree masin ak jumtukaay yu ñuy woowe robinet ak matris ngir defar ci fil vis. Fil yooyu dañuy may tuyo yi, raccords yi ak yeneen mbir ñu boole seen biir bu baax, ci lañuy vissee fil yi ci biti ci fil yu jigéen yi.
Fitting yu am fil yi am fil yu góor wala yu jigéen. Raccord bu jigéen amna fil yuñ defaree ci biir ak jumtukaay bu am fil bu ñuy woowe robinet. Raccord bu góor amna fil yuñ defaree ci biti ak jumtukaay bu am fil bu ñuy woowe matris.
● Fiil yu góor yi ñu ngi leen woowe fiil yu biti (ci biti).
● Fiil yu jigéen yi ñu ngi leen di woowe fiil yu biir (ci biir).
● Fil bu góor bi wala bu biti dañu ko jagleel ngir vis ci bu jigéen bi wala bu biir bi ngir lëkkaloo bu dëgër te baña senn. Xeetu fil yi mën nañu nekk yu kon wala yu jub.
● Fil yu am conique, ci misaal, fil NPT (Fil Tuyo National).
● Fil yu jub, ci misaal, fil BSPP (Tuyo Standard Parallèle bu Grande Bretagne).
● Fiil NPT yi ñoo gëna bari ci Etats Unis. Ginaaw dañu am conique, ñoo gëna dëgër te gëna dëgër buñu ko méngale ak fiil yu paralel yi.
| Tolluwaay bu jaar yoon | ASME B16.11 (Raccords filetés en acier forgé) |
| Dayo | 1⁄8 "- 4" (dayo yu wuute ci laaj) |
| Formulaire de thread | NPT (ANSI/ASME B1.20.1), BSP/BSPT |
| Note de pression | 2000#, 3000#, 6000# |
| jumtukaay | Acier carbonique (A105, A350 LF2), Acier inoxydable (A182 F304/316/321), Acier Alliage (A182 F11/F22) |
| Xeet yi | Accouplage fileté, Nipple fermé, Coude, Tee, Union, Casquette, Bouchon, Filetette, Raccords Rainées & Filéates |
| Saytu | Fiil jauge xool, NDT (UT/MT/PT), test hydro, MTRs yu mat |
Standard ak leeral
● Standard: ASME B16.11 – Raccords en acier forgé, soudure à prise et fileté
● Standard yiñ tëral:
● NPT (Fiil de tuyo national): ci ANSI/ASME B1.20.1 – ñu bari ci Amerique du Nord
● BSP (Tuyo buñ miin ci Grande Bretagne): Fiil BSPP (parallèle) ak BSPT (conique) – ñu bari ci Europe ak Asie
● Dayo Range: 1⁄8′′ – 4′′ (dayo yu gëna mag suñu ko laajee)
● Njàngat yi: 2000 #, 3000 #, 6000 # (dafay aju ci dayo bi ak liñ ko defaree)
● Mbir yiñ ciy jëfandikoo:
1.Acier de carbone: ASTM A105, A350 LF2
2.Acier inoxydable: ASTM A182 F304, F304L, F316, F316L, F321 (raccords de tuyau fileté en acier inoxydable)
3.Acier alloy: ASTM A182 F11, F22, F91
Tablo diisaayu raccords de tuyau fileté
|
Dayo nominal |
90 degre concu |
45concou |
Tee |
Couplage bu mat |
Genn-wàll couplage |
Union |
|||||||||
|
DN |
NPS |
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
3000 |
6000 |
3000 |
6000 |
3000 |
|
6 |
1/8 |
0.08 |
0.1 |
0.18 |
0.0B |
0.08 |
0.14 |
0.13 |
0.22 |
0.35 |
0.06 |
0.09 |
0.03 |
0.25 |
|
|
8 |
1/4 |
0.08 |
0.15 |
0.33 |
0.08 |
0.12 |
0.27 |
0.13 |
0.22 |
0.57 |
0.08 |
0.13 |
0.05 |
0.11 |
0.3 |
|
10 |
3/8 |
0.13 |
0.3 |
0.48 |
0.11 |
0.26 |
0.49 |
0.16 |
0.4 |
0.66 |
0.11 |
0.24 |
0.07 |
0.17 |
0.35 |
|
15 |
1/2 |
0.22 |
0.45 |
0.72 |
0.23 |
0.42 |
0.69 |
0.35 |
0.58 |
1.15 |
0.22 |
0.4 |
0.14 |
0.29 |
0.46 |
|
20 |
3/4 |
0.32 |
0.7 |
1.29 |
0.29 |
0.59 |
1.12 |
0.45 |
0.9 |
1.8 |
0.3 |
0.52 |
0.24 |
0.42 |
0.61 |
|
25 |
1 |
0.5 |
1.21 |
1.65 |
0.43 |
0.96 |
1.47 |
0.66 |
1.46 |
2.25 |
0.55 |
1.06 |
0.41 |
0.76 |
0.85 |
|
32 |
11/4 |
0.8 |
1.47 |
2.7 |
0.67 |
1.15 |
2.65 |
1 |
1.9 |
3.95 |
0.86 |
1.32 |
0.71 |
0.96 |
1.35 |
|
40 |
1.5 |
0.93 |
2.6 |
3.9 |
0.82 |
2.02 |
3.6 |
1.4 |
3.4 |
4.87 |
1.26 |
2.2 |
0.88 |
1.42 |
1.92 |
|
50 |
2 |
1.6 |
3.05 |
6.05 |
1.32 |
2.5 |
4.6 |
2.2 |
3.8 |
8.89 |
1.65 |
3.37 |
1.25 |
2.24 |
2.85 |
|
65 |
2.5 |
2.95 |
5.8 |
9.88 |
3.3 |
3.81 |
7.81 |
4.2 |
7.2 |
128 |
3 |
4.81 |
2.29 |
3.8 |
4.9 |
|
80 |
3 |
5.6 |
8.85 |
16.4 |
5.4 |
6.3 |
13.1 |
6.15 |
10.7 |
21.6 |
4.25 |
7.25 |
3.29 |
5.43 |
7.1 |
|
100 |
4 |
10.5 |
14.9 |
23.5 |
9 |
9.8 |
17 |
14.7 |
179 |
29.5 |
78 |
12 |
565 |
9.26 |
|
Njariñu raccords tuyo filetés
Yomb naa samp
Fitting tuyo yi am filet mën nañu leen samp ak dindi ci anam wu yomb, moo tax ñu baax ci sistem yiy faral di soxla maintenance wala soppali.
01
Leak-Lëkkaloo buy firnde
Fitting tuyo yiñ filee nimu waree dañuy tëju bu baax, suko defee sistem bi du am luy senn su amee presion.
02
Njëgg-Am njariñ
Fitting yu am filet yi ñoo gëna yomb sunu ko méngale ak yeneen xeeti fitting yi, moo tax ñu baax ci sistemu tuyo yu bari.
03
Xeeti jumtukaay yu bari
Fitting tuyo yu am filet yi bari nañu ci meceer yi, moo tax ñu mëna jëfandikoo ci anam yu bari, dalee ko ci plomberie dëkkuwaay ba ci sistem usine yu am pressure bu kawe.
04
Dure
Suñu ko defaree ay meceer yu melni asiye inox wala asiye aleage, raccords filet yi dañuy yàgg te duñu yàqu, tàngoor wu metti wala pression yu tar.
05
Xeetu raccords filetés ci klaas ak dayo
|
Tegtal |
Designaasioŋu klaas |
||
|
2000 |
3000 |
6000 |
|
|
concours 45 et 90 degres |
1/2 - 4 |
1/2 - 2 |
1/2 - 2 |
|
1/2 - 4 |
1/2 - 2 |
1/2 - 2 |
|
|
1/2 - 4 |
1/2 - 2 |
1/2 - 2 |
|
|
Mur de tuyo |
SCH 80 / XS |
SCH 160 |
XXS |
Amna xeeti fitting yu bari yuñ defaree tuyo yu am filet, bu nekk ci ñoom defar nañu ko ci anam wu amul benn werante. Xeet yiñ gëna xam ñooy:
Coude à file
Raccords yooyu dañuy yombal coppite yi ci yoon wi, te loolu lu am solo la ci navigation ci sistemu tuyo yu jafee xam.
Accouplage fileté
Accouplage yi dañu leen di jëfandikoo ngir boole ñaari tuyo yu am benn diametre, suko defee ñu dajaloo bu baax te baña senn.
Tees yu am fil
Tees yi dañuy may ñu boole ñatti tuyo, ñu daal di nekk junction bu am formu 'T'.
Croix à fil
Croix yi dañuy boole ñeenti tuyo yi, ñu am formu croix -.
Caps filetés
Kap yi dañu leen di jëfandikoo ngir tëj catu tige bi, ngir mu aar ko ba noppi moytu mbalit mi dugg ci tige bi.
Sindikaa yu am fiil
Union yi ay fitting lañu yuy tax ñu mëna dindi tuyo yi ci anam wu yomb ngir toppatoo wala defar.
Bushings filetés
Bushings ñu ngi koy jëfandikoo ngir boole tuyo yu bari te wuute dayo.
Application ci raccords tuyo filetés
Fittings tuyo fileté ñu ngi koy jëfandikoo ci yenn liggéey yu melni:
Tabax
Fitting yu am filet ñu ngi leen di jëfandikoo bu bari ci tabax ngir sistem plomberie, loolu mooy tax lëkkaloog tuyo yi nekk ci anam wu wóor te wóor.
01
Liggéeyukaay petrol ak gaz
Ci wàllu petroŋ ak gaz, di barab yu gëna am solo ak dëgër, dañuy jëfandikoo raccord yu am filet ngir seen wóor ak seen instalaasioŋ bu yomb.
02
Defar
Fitting yu am filet yi dañu am solo lool ci defar yi, ndax dañuy yombal ndox mi wala gaz bi di daw bu baax.
03
Liggéeyukaay Chimik
Ci liggéeyukaay yiy liggéey ci mbir yuy yàq, limu macceer yi ñuy jëfandikoo ci raccords filet yi mënu ñu yàq, moo tax dañu leen wara baña am.
04
