Raccords de tuyau fileté

Raccords tuyau filetés ñu ngi leen di jëfandikoo ci sistemu tuyau yi, fu alëkkalekaay bu am filet mekanikmoo gëna baax ci soudure, rawatina ci ligne yu ndaw yi, ci lëkkaloo jumtukaay yi, ci bànxaas yi, ci barabi drein ak ventilation, ak ci montage yu yomb ci toppatoo bi. Ngir raccords en acier forgé, li ñuy gëna xam mooyASME B16.11, ak njeexte yu am filet yu am ciNPT, BSPT, wala BSPP, dafay muur1/8" ba 4"ak xeeti fitna yu melni2000, 3000 ak 6000.

Fitting bu am fil buñu wara jënd ci jëmm ji kese. Ñatti mbir yiy saytu nangu gi ñooyxeetu buum, klaasu fitna, akgrade matériel.

Xeetu buumwar na méngoo ak desine projet bi ak marse bi koy jot:

• NPTñu ngi koy gëna jëfandikoo ci Amerique du Nord ci petroleum, gaz ak ci sistemu usine yi.
• BSPTmuy buum bu xawa sëgg, ñu koy jëfandikoo bu bari ci marse exportaasioŋ yu bari.
• BSPPfile parallèle la, te dafay laaj rondelle buy tëj, garniture, wala O-ring buñ defaree ci barabu interference file kese.

Klaas bu am doolewar nañu ko méngale ak anam yi ñuy jëmmale liiñ bi:

• Klaas 2000
• Klaas 3000
• Klaas 6000

tànneefi jumtukaayñu ngi leen di faral di tànnee ci anam wi ñu koy defee:

• ASTM A105ngir serwiis asiye karbon
• ASTM A350 LF2ngir serwiisu tàngoor -
• ASTM A182 F304 / F316ngir serwiis buy xeex corrosion-
• ASTM A182 F11 / F22 / F91ngir sistemu alloy yu tàngoor - yéeg

Ngir jëndkat yiy seettablo dimension raccords de tuyau fileté, ëmbiitu xët wi gëna am njariñ du tablo xeetu katalog- bu bari ay nimero yuñ kopie. Xeetu jëfandikoo gi mooy wanetànneefak leeral ni digg -ba-mujjentalu ak geometri buum gi ñu ngi ko firnde ciASME B16.11ak standard thread biñ wax.

Ngir am dimension yu leer, devis bi wala xoolaat nataal bi dafa wara firnde:

• xeetu ajuste
• dayo nominal
• klaasu fitna
• buum standard
• grade matériel

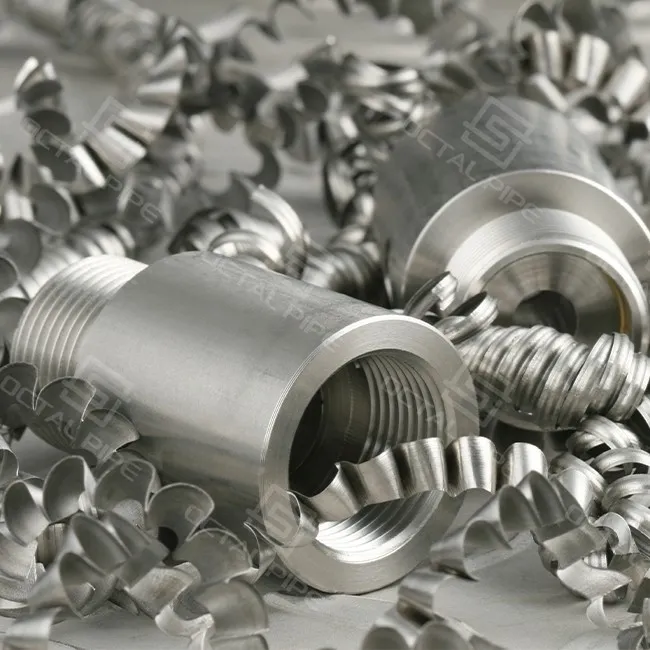

A couplage de tuyau filetébenn la ci fitting forgé yiñ gëna komànde ci tuyo yu ndaw. Dañu koy jëfandikoo ngir boole ñaari catu tuyo yu am filet ci yoon wu jub, te dañu koy faral di gis ci sistem yu am njariñ, ci bànxaasu jumtukaay yi, ci kofre skid yi, ak ci liggéey yi ñuy wecci.

Buñu sukkandikoo ci wàllu jënd, li gëna am solo ngir saytu couplage tuyo fileté mooy:

• buum standard: NPT, BSPT, wala BSPP
• klaasu fitna: 3000 wala 6000 ñooy gëna bari ci serwiis yu ndaw -
• grade matériel: A105, LF2, F304, F316, ak ñoom seen.
• kalite usine: profil bu sell ak nangu jauge bu jaar yoon
• toppu: marking ak MTR lëkkaloo ak nimero tàngoor

Couplage tuyo fileté melnani lu yomb, waaye sudee xeetu file bi baaxul, pièce bi mënul jëfandikoo ci barab bi. Loolu moo waral ñu wara bind komànd yi ci formaa PO bu mat sëkk, lu ci melni:

Miliyong:

ASME B16.11, couplage complet fileté, 1 in, NPT, classe 3000, ASTM A105, quantité ______

Raccords de tuyau fileté de 1/2 poucenekk benn ci dayo yi ñuy gëna faral di soppali ci tuyo yu ndaw ndax ñu ngi toog ci barab bi instalaasioŋ bi gëna neex, waaye jafe-jafe yi bawoo ci ñàkka doxal bu baax ba leegi barina. Ci projet yi, dayo bi dañu koy jëfandikoo bu bari ci liiñ yiy boole jumtukaay yi, ci manifold yi, ci lëkkaloog vanne root yi, ci barabi drein ak ventilation, ci liiñ yiy jël misaal, ci liiñ yiy raxas, ci car yiy dose chimik, ak ci lëkkaloo yi ci skid compact.

Ngir ekipu jëndkat yi, lii du lu " ndaw te yomb". Dafay faral di nekk benn ci dayo yi gëna yomba suufeel ak benn ci dayo yi gëna gaaw ci sos jafe-jafe ci terrain sudee formu buum gi, masin bi, wala tànneefu klaas bi jaarul yoon. 1/2 puus fitting mën na nuru lu baax ci gis-gis, waaye sudeexóotaayu fiil bi, cone bi, pitch bi, finishing crest bi, wala chamfer biy duggbuñu ko saytuwul nimu waree, jafe-jafe instalaasioŋ yi dañuy feeñ ci saasi.

Daj fépp cagaRaccords de tuyau fileté de 1/2 pouceduggal:

• couplage- lëkkaloo bu jub diggante ñaari catu tuyo bu am file
• coñcu- coppite ci wàllu tuyo yu dëgër

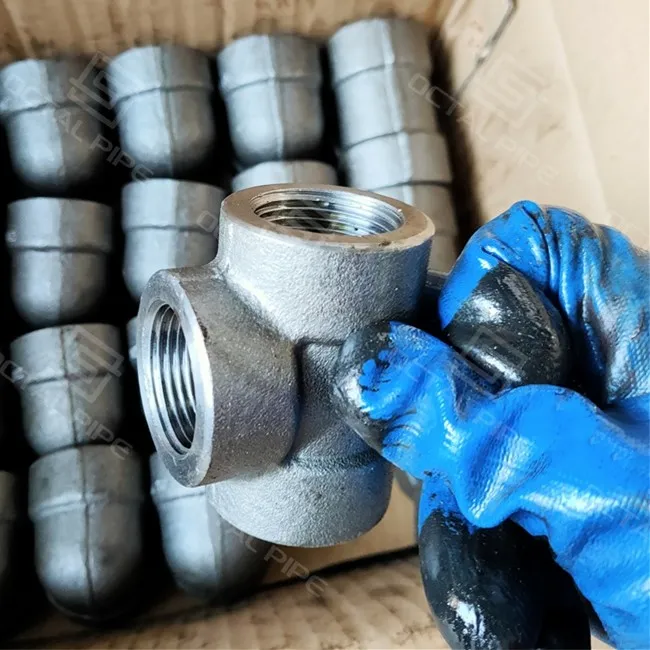

• tee- gennokaayu jauge yi, vanne yi ak dem - yi
• sindikaa- lëkkalekaay buñ mëna dindi ngir toppato-assemblée yu baax
• roof- dafay tëj ubbite yiñ jëfandikoowul
• kap- tëjug njeexte ngir lëkkaloo thread yi ci biti
• ween- lëkkalekaay bu gàtt bu am fil diggante raccords wala vanne
• buum- génnug bànxaas bu joge ci boppu bu gëna mag dem ci liiñ bu ndaw-

Raccords de tuyau fileté de 1 poucedi gëna jëfandikoo ci ligne yu ndaw, skid chimik, sistemu air comprimé, boucles de traitement ndox, ak lëkkaloo branche yuñ mëna dindi fu am solo ngir mëna toppatoo. Dayo bii mooy barab bi jëndkat yi di tàmbalee méngale, du xeetu fitting rek, waaye itam3000 ak 6000, asiye karbon ak asiye inox, ak NPT ak BSPT/BSPP, ndax fitting bi leegi amna njeexital yu gëna direct ci wóorum sealing bi, stabilite branch bi, ak mëna liggéey ci diir bu yàgg.

Buñu sukkandikoo ci jëndkat yi,Raccords de tuyau fileté de 1 poucewaru ñu ko komànde ni ay tegtali stock yu yomb. PO bu gëna am doole moo wara fësalASME B16.11, xeetu rëdd, dayo 1 puus, fil buñ miin, klaasu preesioŋ, grade macceer, ak saytu / këyit yiñ laaj. Ci jëf, jafe-jafe yi gëna bari ci dayo bii ñooyfiil bi mënul méngoo, teela lëkkale ci diiru montage, ak seytu toppu bu néew doole, moo tax jëndkat yi di gëna bàyyi xel cixool jauge thread, màrk, ak MTRbalaa ñu koy yóbbu.

Raccords filetés ngir serwiis pression ñu ngi koy defaree ciblank forgé, topp ci masin ak traitement thermique bu méngoo ak grade macceer bi. Doxalin boobu amna solo ndax mën mën bi mujjee aju ci dayo nominal bi kese. Dafay aju ci:

• njubte buum
• konsentrisite
• yaatuwaayu mbagg
• forage wéy
• pression bu dëppoo

Ngir saytu, komànd yiñ defaree fiil yu am valeur bu kawe - war nañu am:

• xool jauge threadngir NPT/BSP
• saytu dimensionci màndarga yu am solo
• saytu màrkngir dayo, grade, klaas, ak nimero tàngoor
• MTR / topp rapooru test moulin
• MT / PTsuñu ko soxlaa
• test hidrostatik wala pneumatiksudee PO wala projet bi moo ko leeral

Raccord tuyo fileté mooy raccord forgé wala masin bu am fil tuyo interne wala externe ñu koy jëfandikoo ngir boole tuyo yi, vanne yi, jumtukaay yi, wala sortie branch yi te duñu souder. Ci sistem asiye forgé, dañuy faral di defar raccords filetés ngirASME B16.11ak ñu koy joxe ci xeeti lëkkaloo yu melniNPT, BSPT, ak BSPP.

Dañu leen di gëna jëfandikoo su projet bi soxlaa:

• montage bu gëna gaaw
• wuutu bu gëna yomb
• liggéey bu néew ci liggéeyukaay bi
• Instalaasioŋ bu ndaw -
• toppato-xaritu tuyo yi

Ci projet yi, raccords filetées ñu ngi bari cilignéeru jumtukaay yi, lëkkalekaay yi am volume bu woyof, serwiis publik yi, drein yi, ventilatër yi, ak ensemble yuñ monte ci skid-fu montage bu gaaw ak dindi lu am solo.

Li gëna am solo ci raccords filetées mooyresultaawu sealing a ngi aju bu bari ci forme bu jaar yoon, jëfandikoo montage bu jaar yoon, ak ci anamu sealing bu jaar yoon. Sudee dañu komànde thread standard bu jaarul yoon, lëkkaloo bi mën na nuru lu jaadu ci dayo waaye ba leegi mën na ñàkk ci fit-up wala di senn ci service bi.

Risk yiñ gëna xam ñooy:

• NPT ak BSP mënul méngoo
• file yi yàqu ci transport wala installation
• tanneef bu jaarul yoon
• anam wu doyul ci sistemu fiil paralel
• -seer buy yàq buum gi
• këyitu QA yu néew doole yuy yeexal nangu gi

Loolu tekkiwul ni fitting yu am filet yi wóoru ñu. Loolu dafay tekki ni dañu soxladisipline bu gëna baaxlu ëpp lu jëndkat yu bari yaakaar.

Déet noonu. Ci doxalinu seetlu usine,base de tuyau filetéab baat la bu gëna yaatu te gëna néew lumuy leer. Mën na wax cibase de montage, composant de soutien, bride de sol -, hardware de lampe/balustrade, ou un accessoire de structure, bi araccord filetéci jënd ay tuyo dafay faral di tekki ab presion-am ci ay komponent yuñ defaree ci benn standard tuyo buñ joxe lu melniASME B16.11. Ci beneen anam, base tige fileté mën nekk luy jàppale mekanik wala jumtukaay, waaye fitting tuyo filetée bokk na cifrontière de pressionte dañu ko wara tànnee ci anam wu gëna tar ci wàllu xarala.

Taxawaay boobu amna solo ci jënd ndax xalaatu jënd bi wuute na lool. Dëggraccord de tuyau filetéwar nañu ko komànde cixeetu rëdd, dayo nominal, fil buñ miin (NPT / BSPT / BSPP), klaasu fitna (2000 / 3000 / 6000), grade macceer, ak saytu / këyit yiñ laaj. Baatu seetlu bu leerwul ​​lu melnibase de tuyau filetéwaxul furnisër bi ndax mbir micouplage, coude, tee, union, prise, casquette, ou fil, te waxul dara ci klaas bi, anam wi ñuy tëjee, wala mëna topp. Ci jëf, xeetu kàddu yu leer yooyu bokk nañu ci anam yi gëna gaaw ci sos njuumti ci sitaasioŋ, buum bu méngoowul, wala jot ay yeexal.

Ngir sistemu tuyo yi, mbir mi dafa wara méngoo akpresioŋu serwiis bi, anamu tëjug, ak norme instalaasioŋ, du jëmm ji kese. Ab xeetu "base" buy jàppale - mën na soxla ludul ajustement dimensionel ak ràññeekaay macceer bu yomb, fekk ajustement bu am filet dafa wara satisfairenjubteg fiil bi, tolluwaayu klaas bi, kalite usinage bi, màrk bi, ak mëna toppu MTR. Sudee li projet bi soxla mooy tuyo industriel, jëfandikoo "base tuyo fileté" ni kàddu RFQ lu yomb la; yoon wi gëna wóor mooy nga bind wàll wi ci anam wu jaar yoonraccord filetétegtal.

Lignéeru RFQ bu dëgër dafa wara am ay leeral yu doy ngir moytu thread wala class match. Format bi gëna neex mooy:

ASME B16.11 + xeetu/motif + dayo + fil buñ miin + klaasu preesioŋ + grade macceer + saytu/dokimaa yiñ laaj + bariwaay

misaal 1
ASME B16.11, concou fileté à 90 degrés, 1/2 in, NPT, classe 3000, ASTM A105, nécessaire MTR, quantité ______

misaal 2
ASME B16.11, couplage complet fileté, 1 in, BSPT, classe 6000, ASTM A182 f316, MT + MTR nécessaire, quantité ______

misaal 3
ASME B16.11, tee égal fileté, 3/4 en, NPT, classe 3000, ASTM A350 LF2 CL1, service à faible température, quantité ___

Ci komàndu projet yi, yokk ci motif bi war ak yaatuwaayu saytu bi dafay wàññi coppite yi ci devis yi, jot xëccoo yi ak yeexal yi ci instalaasioŋ bi.

Jokkoo leen leegi

laaj ak tontu



01.Noo wara leeral fittings tuyo fileté ci benn komànd ngir moytu ñu baña méngoo?

PO bu mat dafa wara waxASME B16.11, xeetu ajuste,ngandaay, file standard (NPT / BSPT / BSPP), 2000 / 3000 / 6000, grade matériel, bariwaay bi, ak bépp saytu wala këyit yiñ soxla. Lii mooy anam wi gëna gaaw ngir moytu buum bu méngoo ak bañ QA.

02. Lan lañu wara saytu ci tablo dimension fittings tuyo fileté laata ñuy komànde?

Jenndkat yi war nañu firndeelDayo nominal, klaasu presion, xeetu fil, ak xeetu rëddnjëkk. digg - ba - njeextalu dimension yi ak detay yi ci thread bi dañu leen wara xool bu baaxTablo ASME B16.11, ndax dimension yi dañuy wuute ci xeetu, dayo ak klaas.

03. Lan mooy wuute bu mag bi am ci digganté NPT, BSPT, ak BSPP fittings tuyo filetées?

NPTakBSPTthreads coniques, bisBSPPbuum bu paralel la. Loolu dafay tekki ni anam wi ñu koy tëjee wuute na, te xeetu fiil yii dañuduñu mëna weccooci jënd yi. Fitting bu am dayo bu jaar yoon waaye forme thread bu jaarul yoon mën na ñàkk ci installation bi.

04. Lan nga wara xool sooy jënd couplage tuyo fileté, rawatina ci 1/2 pouce ak 1 pouce dayo?

Ngircouplage de tuyau fileté, rawatinaRaccords de tuyau fileté de 1/2 pouceakRaccords de tuyau fileté de 1 pouce, saytu caabi yi ñooynangu jauge file, classe pression, grade matériel, kalite usine, ak mëna toppu. Ci tolluwaayu forage yu ndaw yii ñuy faral di def, njubte gi ci fiil bi dafay indi jafe-jafe ci gaawaayu sealing bi ak montage bi.

05.Ban këyitu saytu moo gëna am solo ngir raccords tuyo fileté laata ñu koy yóbbu?

xëcc yi gëna am solo balaa -yobbu mooydem/deet- dem saytu jauge thread, saytu dimension, firndelu màrk, akMTR / nimero tàngoor. Ngir serwiis bu gëna am risk, jëndkat yi mën nañu laajMT/PTwalatest hidrostatik / pneumatikngir wàññi xëccoo ak yeexal instalaasioŋ.
